Summary Introduction

     1. HMI: industrial control dedicated Android system, concise interface. Just input relevant parameter on the touch
      screen to modify the spinning craft.
     2. Host control system: ARM + FPGA+ servo scheme adopted, higher integration than PLC.
     3. High precision, prominent control accuracy, large torque servo motor, applicable scope 4S-200S.
     4. The main motor can be replaced with low power motor, which has remarkable energy-saving effect.
     5. Access spinning workshop intelligent manufacturing (MES) system to attain order management, substitution of
     spinning sort and craft, data transmission from PC/mobile.
     6. Uncomplicated mechanical structure, less components damage and maintenance, stable quality

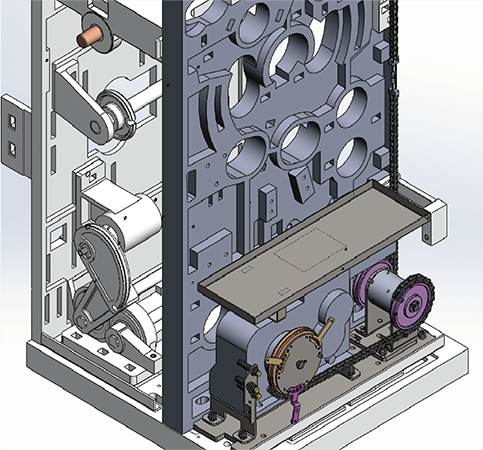

Electric Lift Features

     1. Elec-CAM carried precise curve control brings winding elegant appearance, huge capacity and high speed without
     detachment. Inverter control can achieve 10 speed regulation, compared to the power frequency scheme.
     2. With the function of halfway down, halfway start high reservation rate.
     3. Ring cup plate short motion rich, easy to change, high reservation rate.
     4. The length of the yarn tail, easy regulation, convenient for winding process operation.
     5. Bobbin top head retention function.
     6. Bobbin bottom forming winding combines sizable capacity and aesthetically pleasing configuration.
